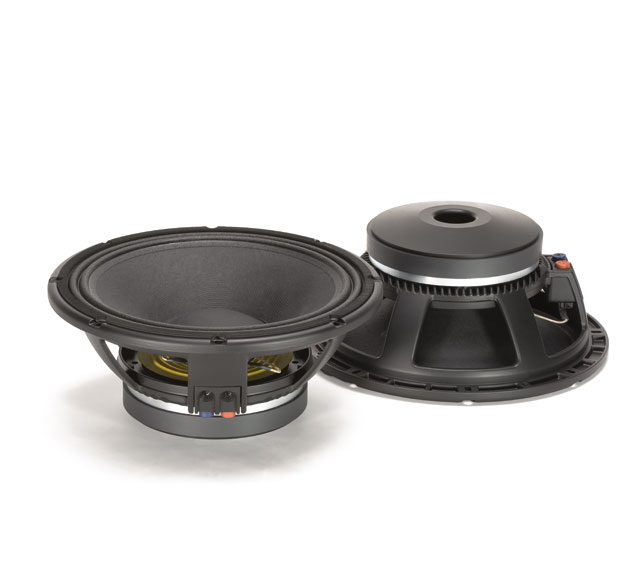

RCF LF12G301

THIELE/SMALL PARAMETRS

• Resonance frequency:43 Hz
• DC resistance:5.8Ω
• Mechanical factor:4.6
• Electrical factor:0.23
• Total factor:0.22
• BL Factor:19 T · m
• Effective Moving Mass:56 g
• Equivalent Cas air load:97 liters
• Effettive piston area:0.053 m²
• Max. linear excursion (mathematical):6.8 mm
• Voice - coil inductance @ 1kHz:2.0 mH
• Half-space efficiency:3.23%

Mounting information

• Overall Diameter:320 / 12.6 mm/inch
• Bolt Circle Diameter:293-304 / 11.5-12 mm/inch
• Bolt Hole Diameter:6.5 / 0.3 mm/inch
• Front Mount Baffle Cut-out:282 / 11.1 mm/inch
• Rear Mount Baffle Cut-out:284 / 11.2 mm/inch
• Depth:138 / 5.4 mm/inch
• Volume occupied by the driver:2.6 / 0.09 liters/ft³
• Net Weight:7.3 / 16.2 kg/lbs
