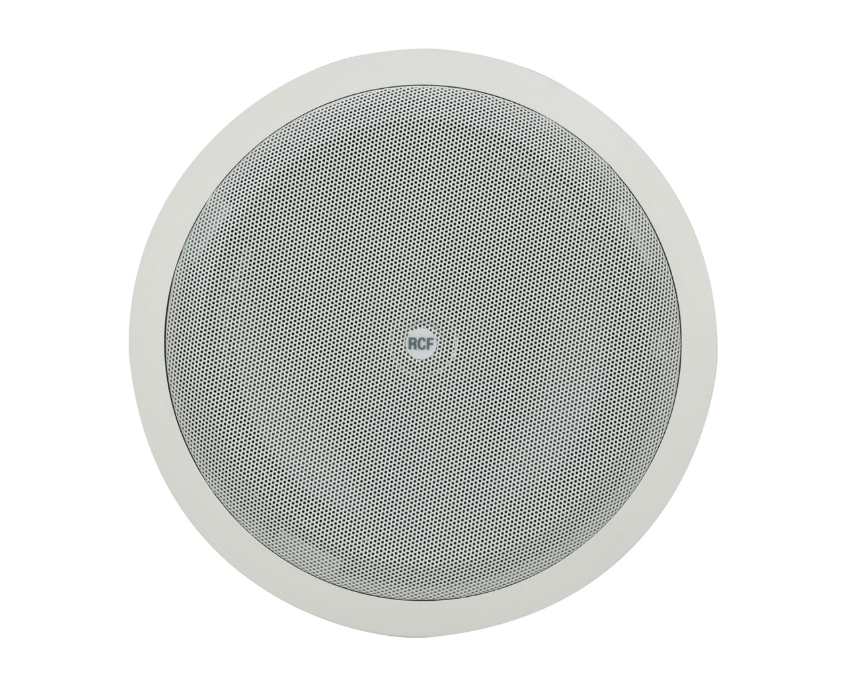

RCF PL 8X WHITE
RCF PL 8X WHITE griestos/sienā montējama 2-joslu akustiskā sistēma. 8'' ZF skaļrunis, 1" AF skaļrunis
|
ACOUSTICAL SPECIFICATIONS |
|
Type of speaker:Ceiling |
|
Frequency Response:60 Hz ÷ 20 kHz |
|
Max SPL @ 1m:109 dB |
|
Horizontal coverage angle:80° |
|
Vertical coverage angle:80° |
|
Power Handling: 20 W RMS |
|
Peak Power Handling:40 W PEAK |
|
System Sensitivity:93 dB |
|
Impedance:8 Ω |
|
Protections:IP 44 |
|
TRANSDUCERS |
|
Speaker:8" |
|
Coaxial:1" |
|
INPUT SECTION |
|
Input connector:6 pin terminal block |
|
Constant voltage:100 V / 70 V |
|
Power Selection:20 - 10 - 5 - 2.5 W (100 V) |
|
CABINET |
|
Hardware:Plastic material |
|
Colour:White |
|
Grille:Steel |
|
PHYSICAL SPECIFICATIONS |
|
Height:88 / 3.46 mm/inch |
|
Width:247 / 9.72 mm/inch |
|
Depth:247 / 9.72 mm/inch |
|
Net weight:1.73 / 3.81 kg/lbs |
|
SHIPPING INFORMATION |
|
Package height:130 / 5.11 mm/inch |
|
Package width:280 / 11.02 mm/inch |
|
Package depth:280 / 11.02 mm/inch |
|
Shipping weight:2.08 / 4.58 kg/lbs |
