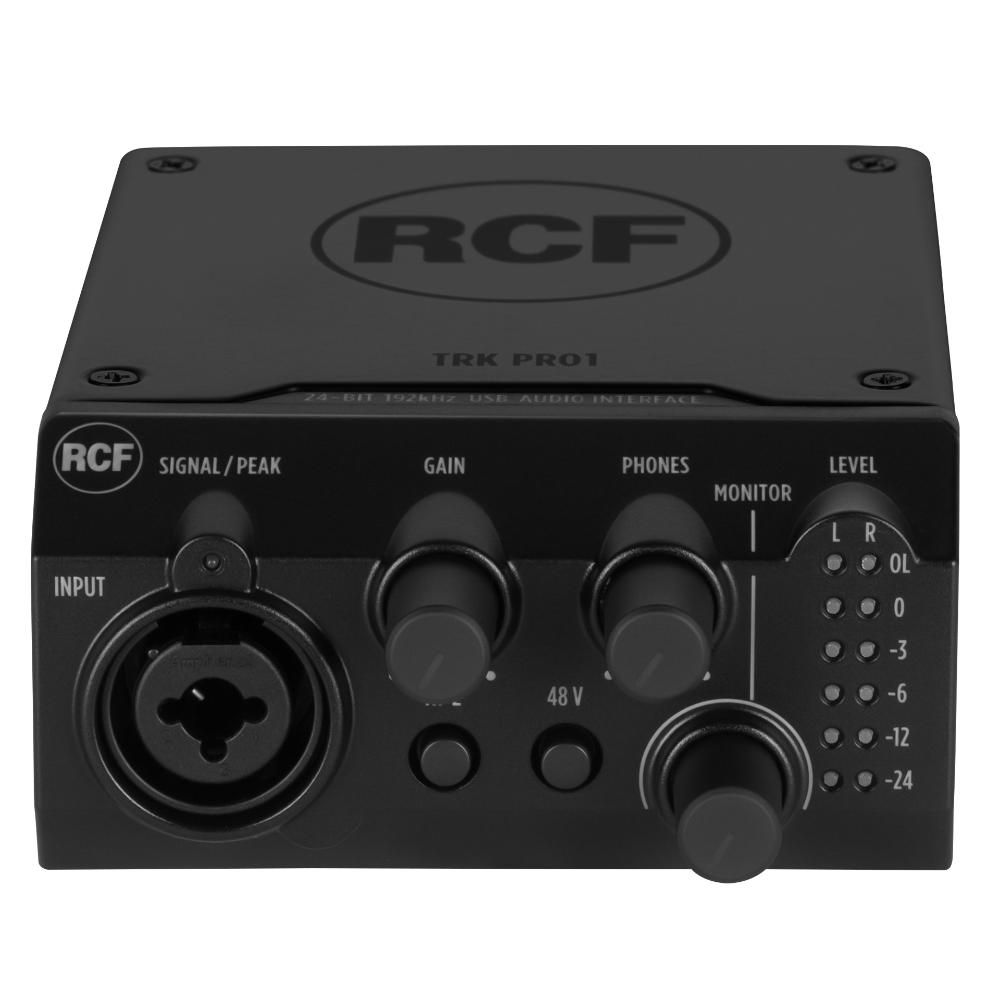

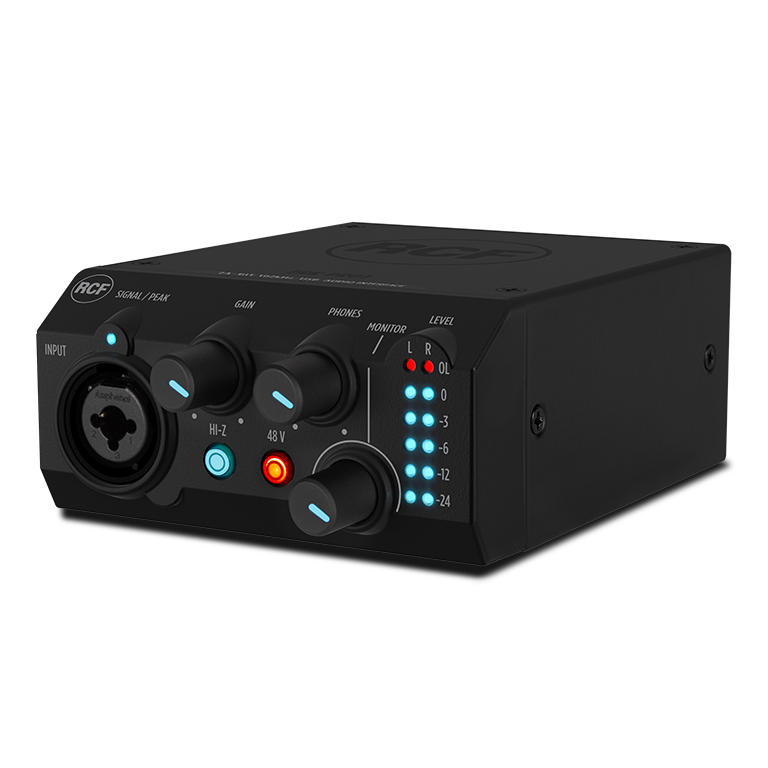

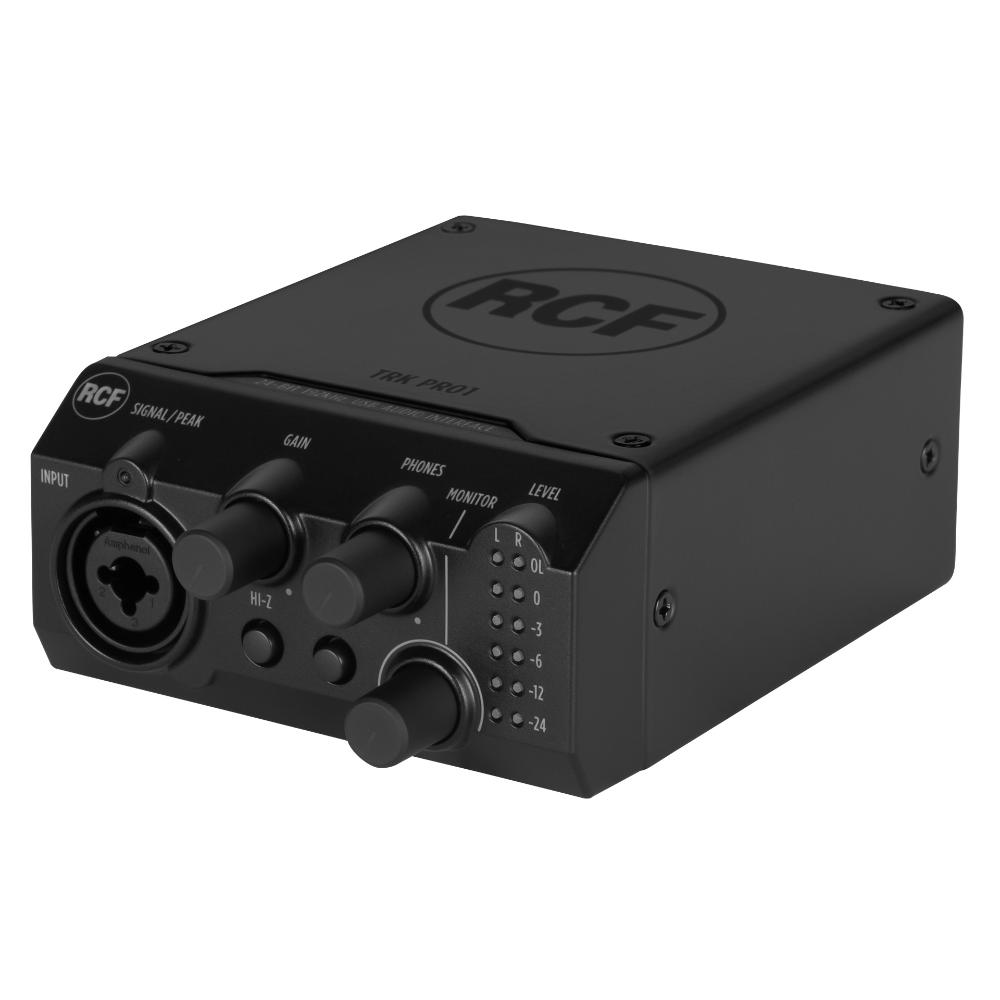

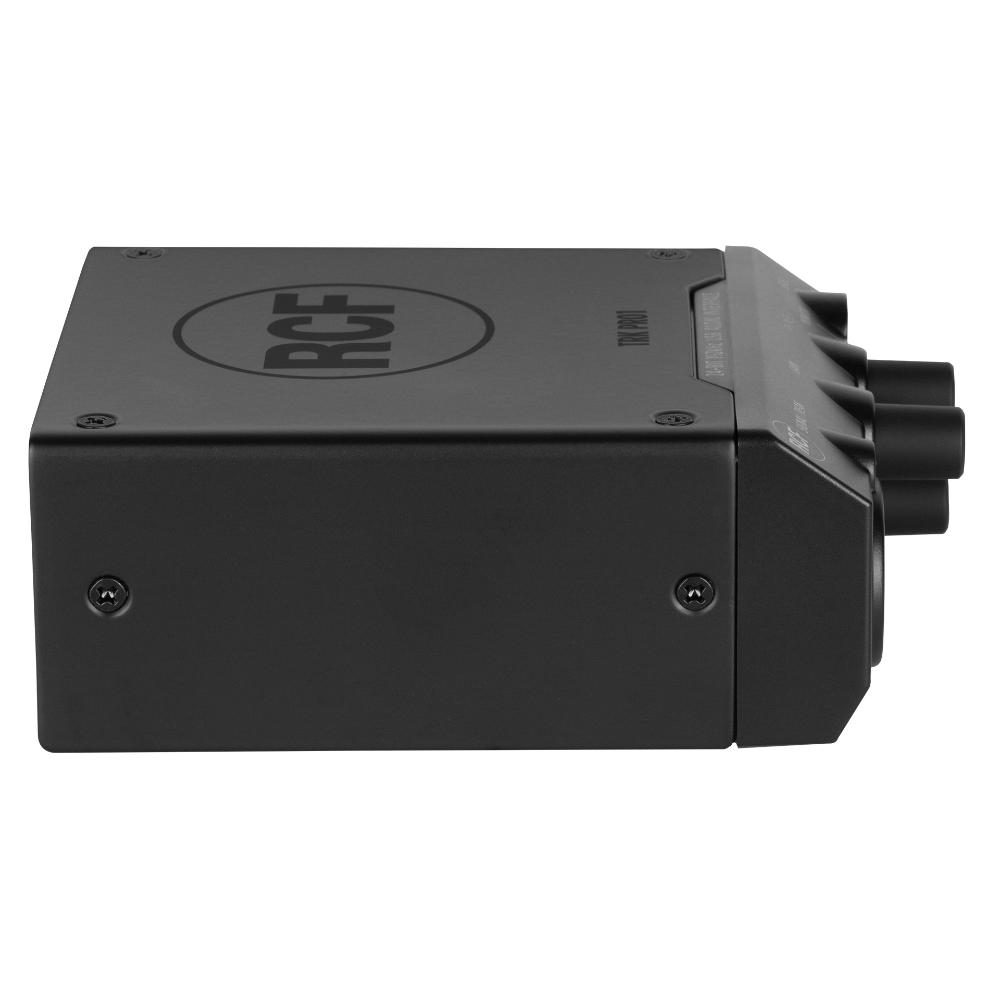

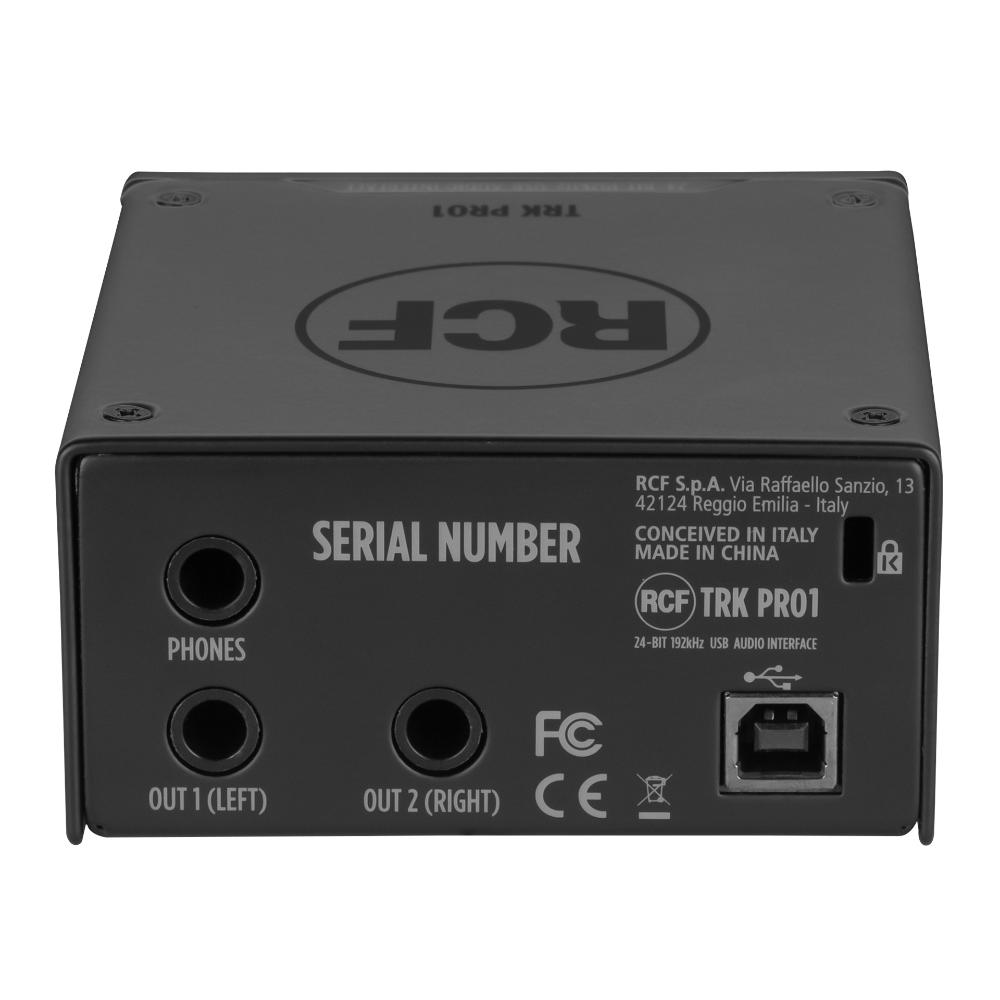

RCF TRK PRO1

17100013

RCF TRK PRO1 ir USB 2.0 audio interfeiss on-the-go ierakstu studijas un audio mērijumu funkciju veikšanai.


Īsumā par TRK PRO1:
- 1x HQ audio MIC/LINE/INSTRUMENT ieeja
- USB barošana
- Simetriski audio savienojumi
- Zema trokšņu līmeņa 24-bit/192kHz audio konverteri
- robusts tērauda korpuss

Tehniskie dati
MIC INPUT (Balanced): Freq. Response: 20Hz-20kHz, +/-0.1 dB
  THD+N: <0.0011%, -1dBFS, 20Hz-20kHz
  Noise EIN: < -120dB
  Dynamic Range: 107dB (A-weighted)
  Input Impedance: 3.5KOhm
  Gain Range: -9 dB ~ +47 dB
  Maximum Input Level: +9 dBu

LINE INPUT (Balanced): Freq. Response: 20Hz-20kHz, +/-0.1dB
  THD+N <0.0011%, -1dBFS, 20Hz ~ 20kHz
  Dynamic Range 107 dB (A-weighted)
  Input Impedance: 15 kOhm
  Gain Range: -20 dB ~ +36 dB
  Maximum Input Level +20 dB

INSTRUMENT INPUT (Unbalanced): Freq. Response: 20Hz-20kHz, +/-0.1 dB
  THD+N: 107dB (A-weighted)
  Input Impedance: 1MOhm
  Gain Range: -10 dB ~ +46 dB
  Maximum Input Level: +10 dBu

ANALOG OUTPUT (Balanced): Maximum Output Level 0dBFS=12dBu
  Freq.Response: 20 Hz~20 kHz, +/-0.2
  THD+N <0.0012%, -1dBFS, 20 Hz-20 kHz
  Dynamic range: 107 dB (A-weighted)

HEADPHONES OUTPUT (Unbalanced):  Output Impedance: <10 Ohm
  Max Output Level: 500 Ohm - 114 mW

SUPPORTED SAMPLE RATES: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
SUPPORTED BIT DEPTH: 16 Bit, 24 Bit

Izmēri: 4.6 x 9.1 x 12.6 cm
Svars 0.5kg
Meteriāls tērauds
€ 139.00
