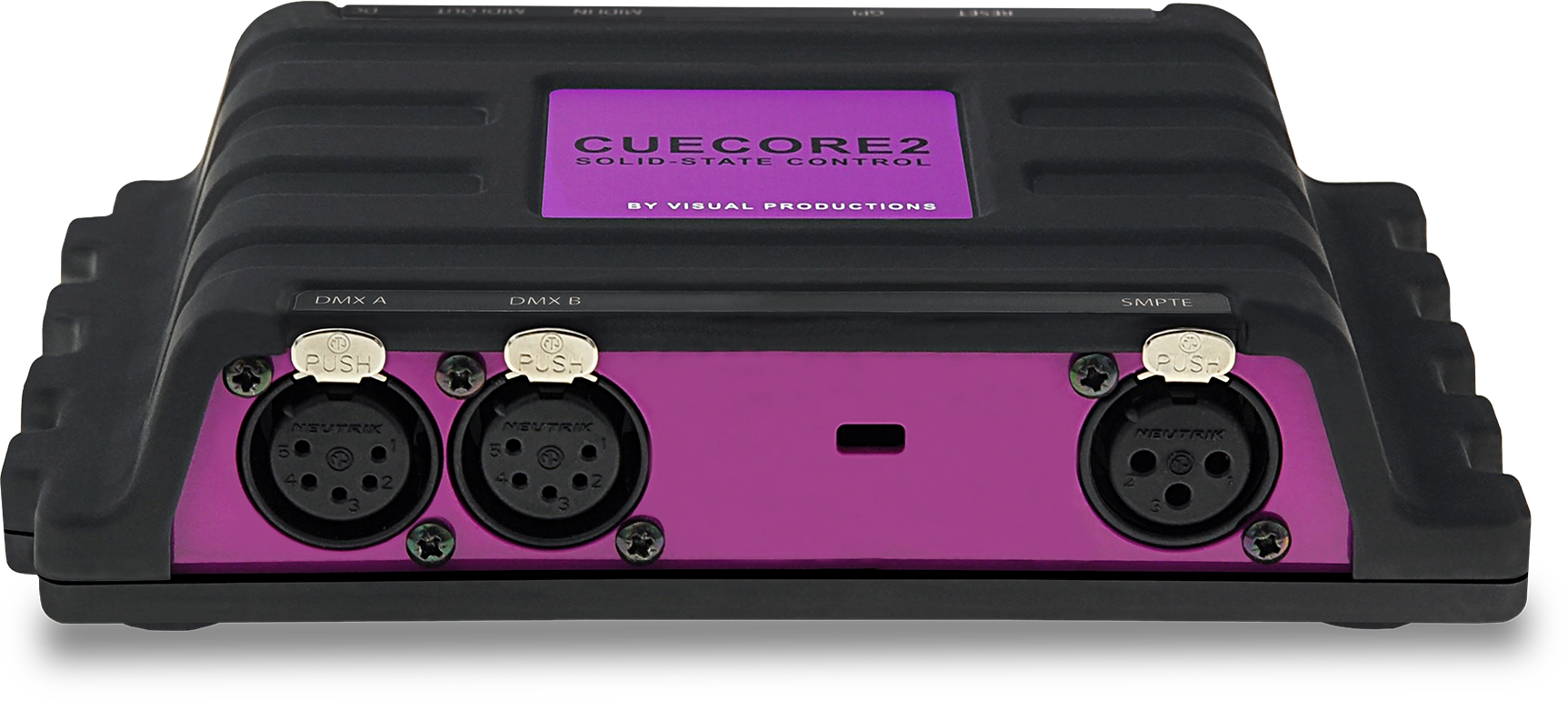

VISUAL PRODUCTIONS CueCore2

CueCore2

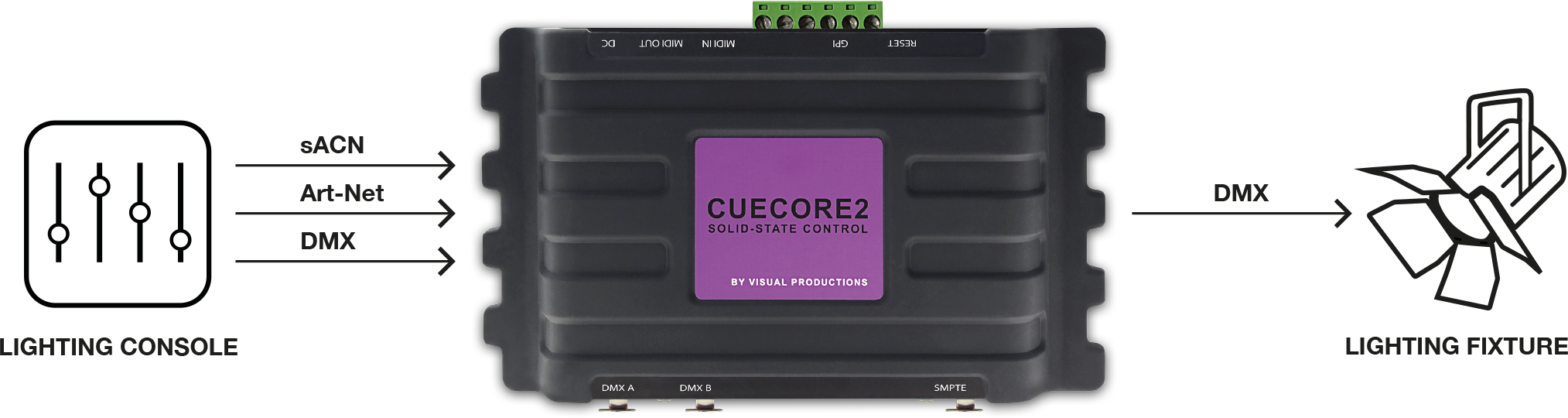

CueCore2 sniedz iespaidīgu protokolu klāstu. No tipiskiem apgaismojuma protokoliem, piemēram, DMX-512, Art-Net, sACN un KiNet. Līd protokoliem, kas ļauj mijiedarboties ar jebkāda veida apgaismojuma iekārtām, piemēram, GPI, MIDI, UDP, TCP un OSC. Tas pat atbalsta timecode protokolus, piemēram, SMPTE un MTC.

Tehniskie dati

DALI port	-
DMX	2x DMX-512 opto-isolated (in or out)
Art-Net & sACN in/out	+/+
KiNet in	-
KiNet out	+
MIDI, MSC & MMC	+
OSC & UDP in/out	+/+
TCP triggers in/out	+/-
GPI port with 4 contact-closures or 0-10V inputs
On-board lighting controller with 6 independent playbacks
DMX, Art-Net and sACN show recorder

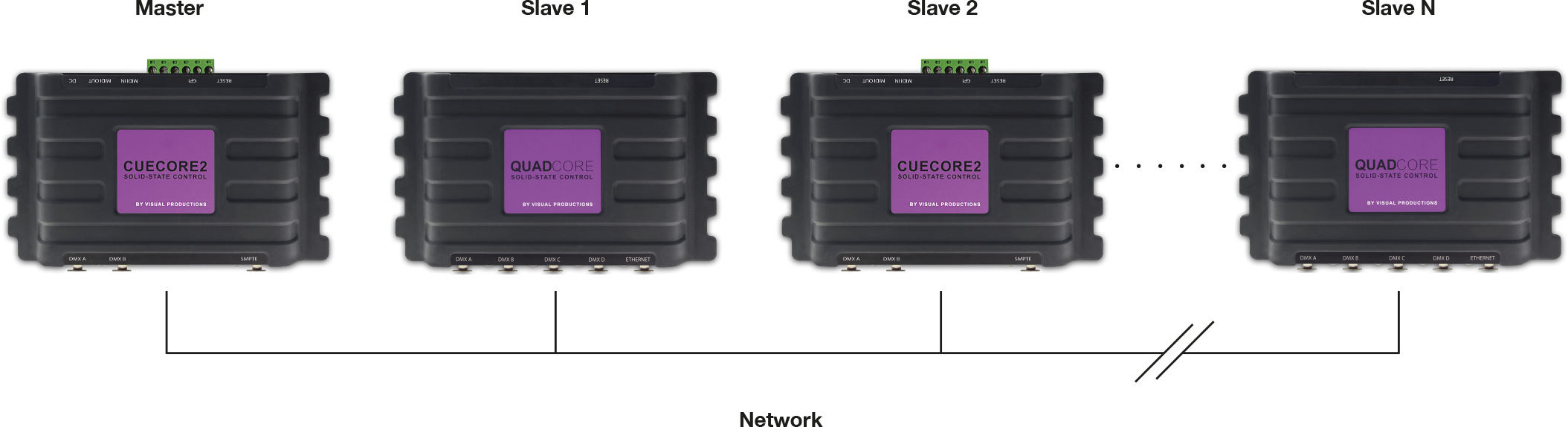

Master/slave protocol for synchronising multiple units
