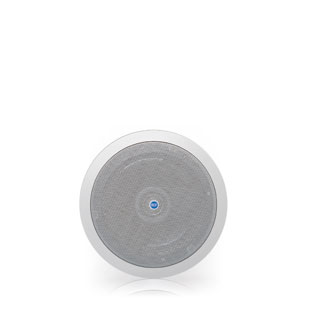

RCF PL 6X

ACOUSTICAL SPECIFICATIONS

Type of speaker:Ceiling

Frequency Response:70 Hz ÷ 20 kHz

Max SPL @ 1m:106 dB

Horizontal coverage angle:100°

Vertical coverage angle:100°

Power Handling:12 W RMS

Peak Power Handling:24 W PEAK

System Sensitivity:92 dB

Impedance:8 Ω

Protections:IP 44

TRANSDUCERS

Speaker:6"

Coaxial:1"

INPUT SECTION

Input connector:6 pin terminal block

Constant voltage:100 V / 70 V

Power Selection:12 - 6 - 3 W (100 V)

CABINET

Hardware:Plastic material

Colour:White

Grille:Steel

PHYSICAL SPECIFICATIONS

Height:73 / 2.87 mm/inch

Width:204 / 8.03 mm/inch

Depth:204 / 8.03 mm/inch

Net weight:1.28 / 2.82 kg/lbs

SHIPPING INFORMATION

Package height:110 / 4.33 mm/inch

Package width:240 / 9.44 mm/inch

Package depth:240 / 9.44 mm/inch

Shipping weight:1.56 / 3.43 kg/lbs
